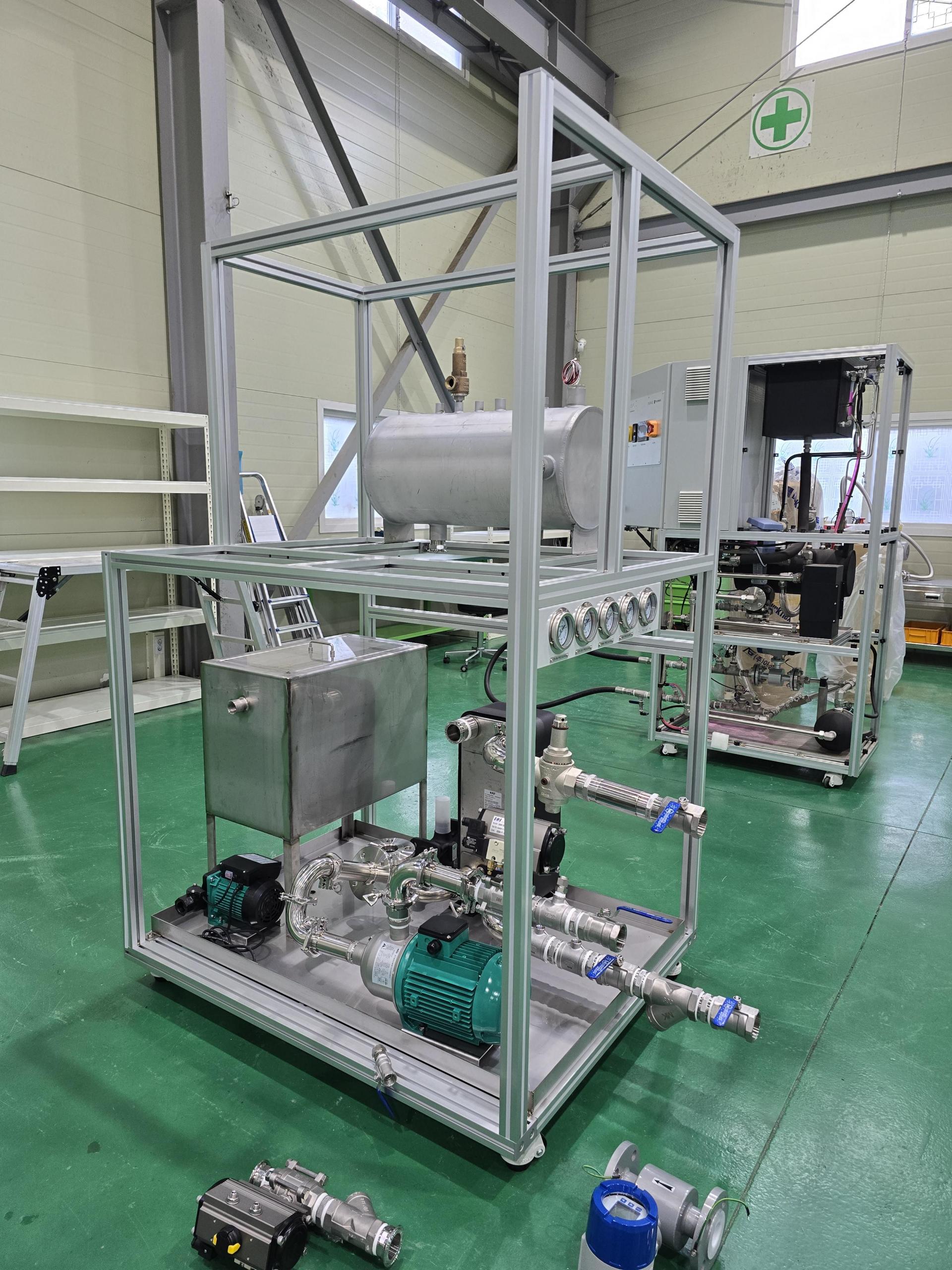

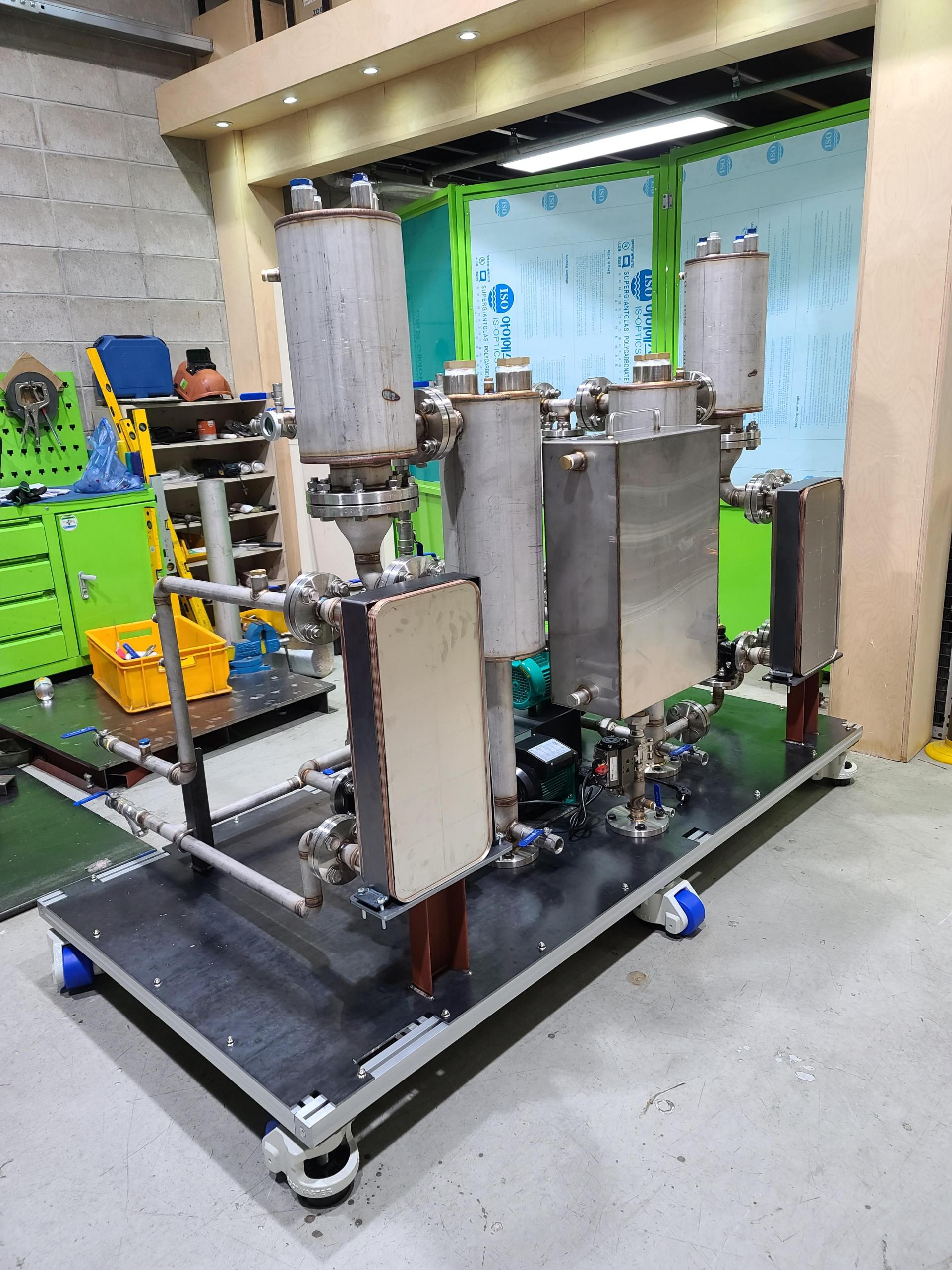

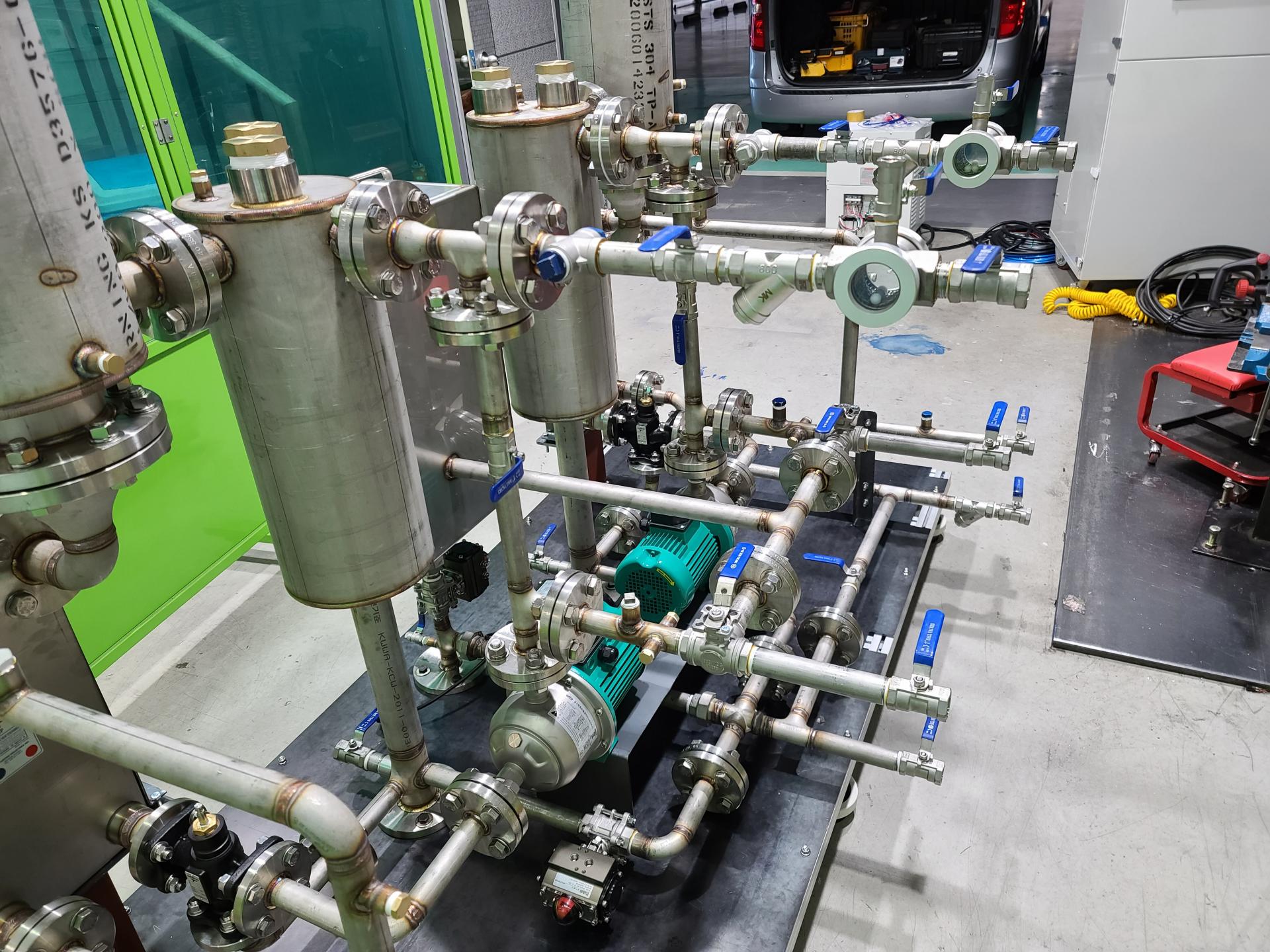

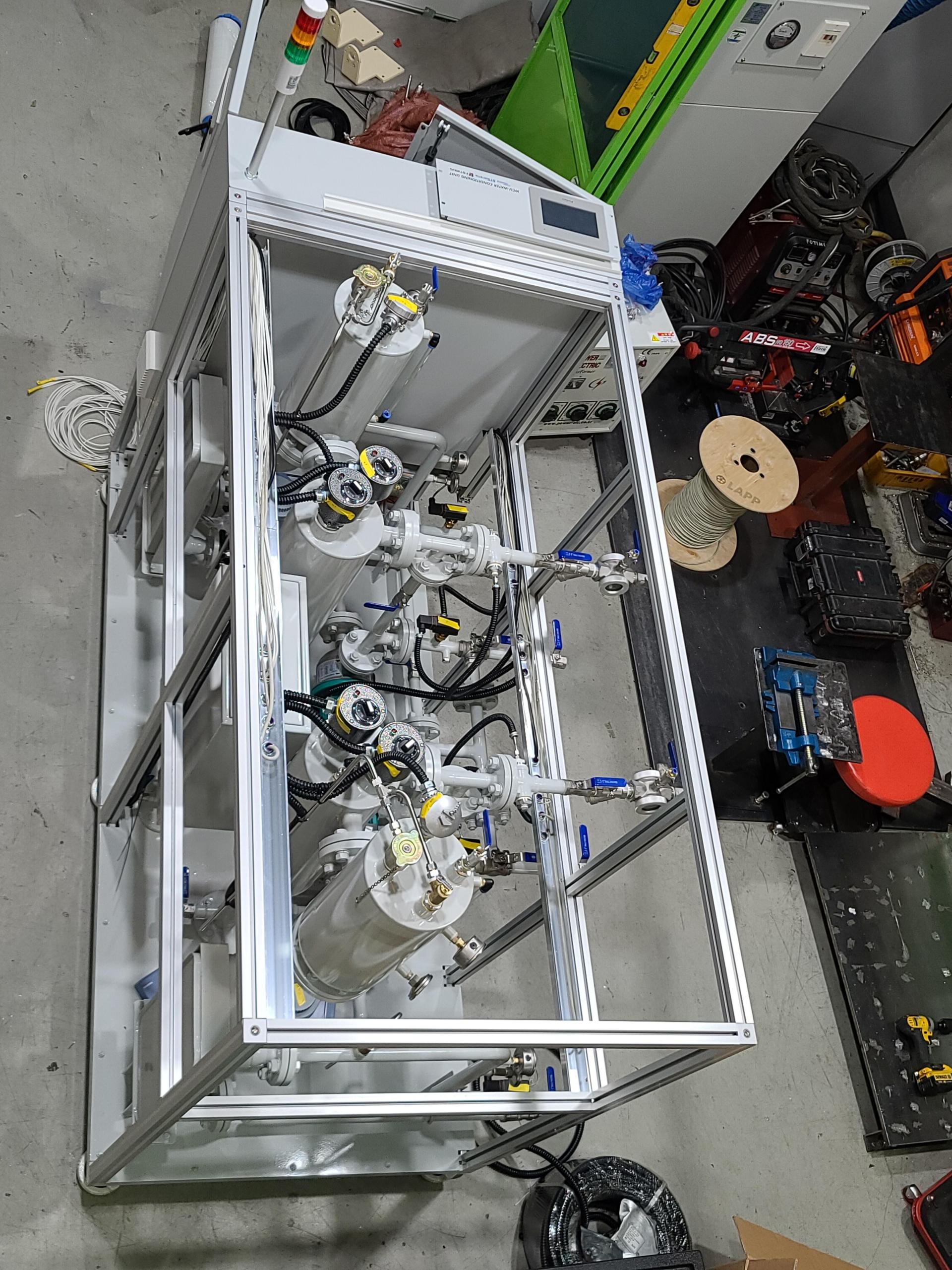

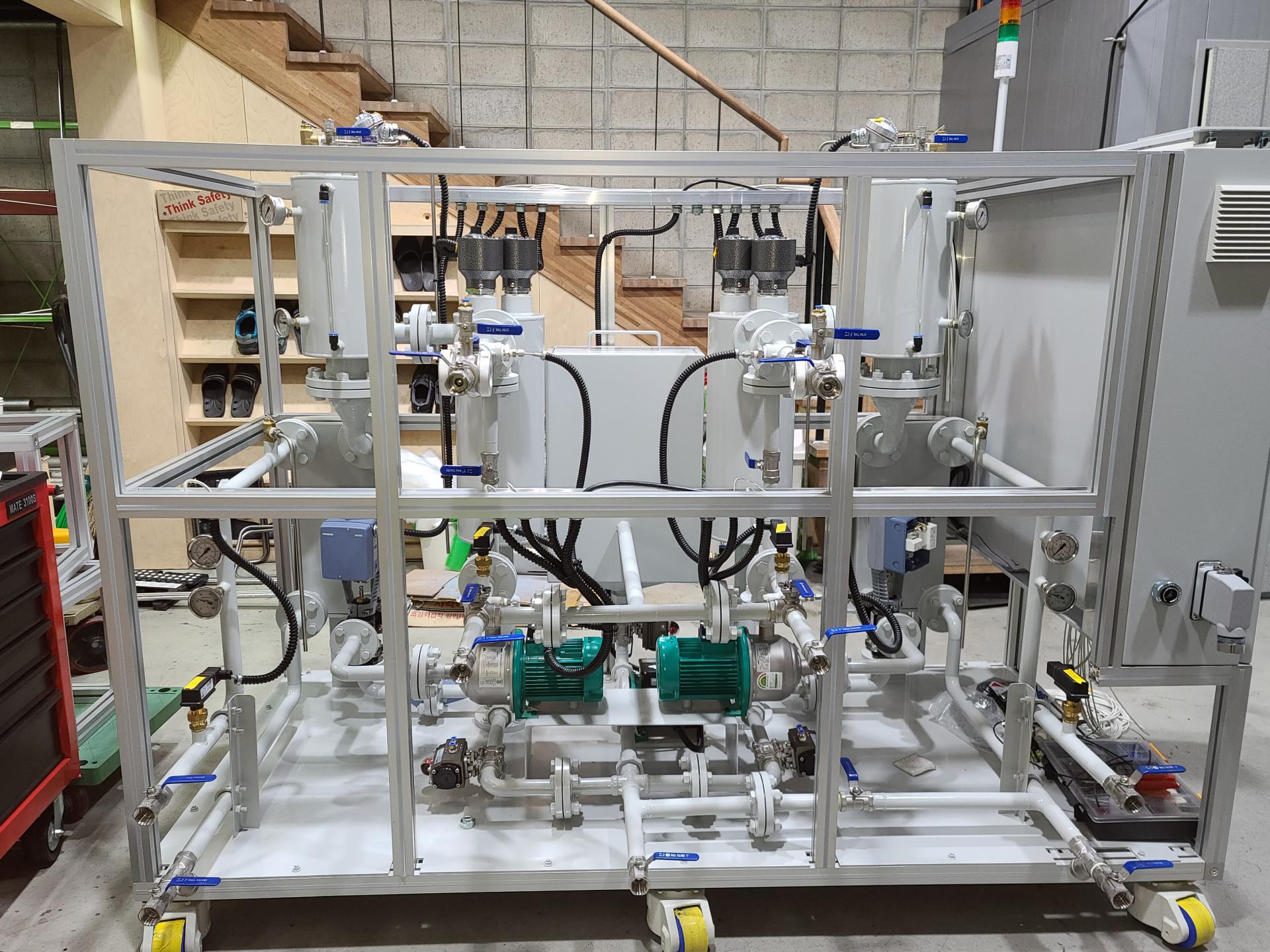

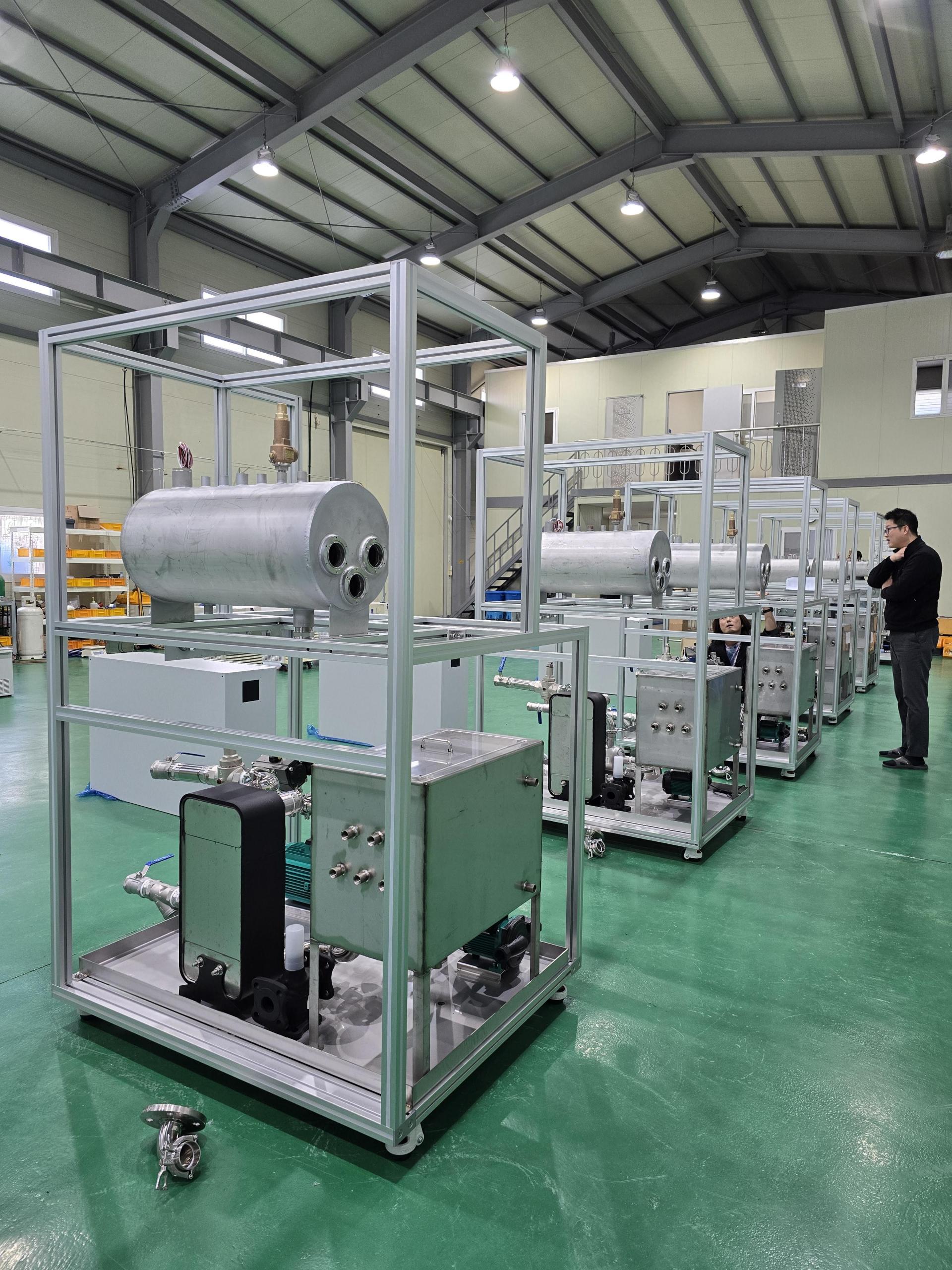

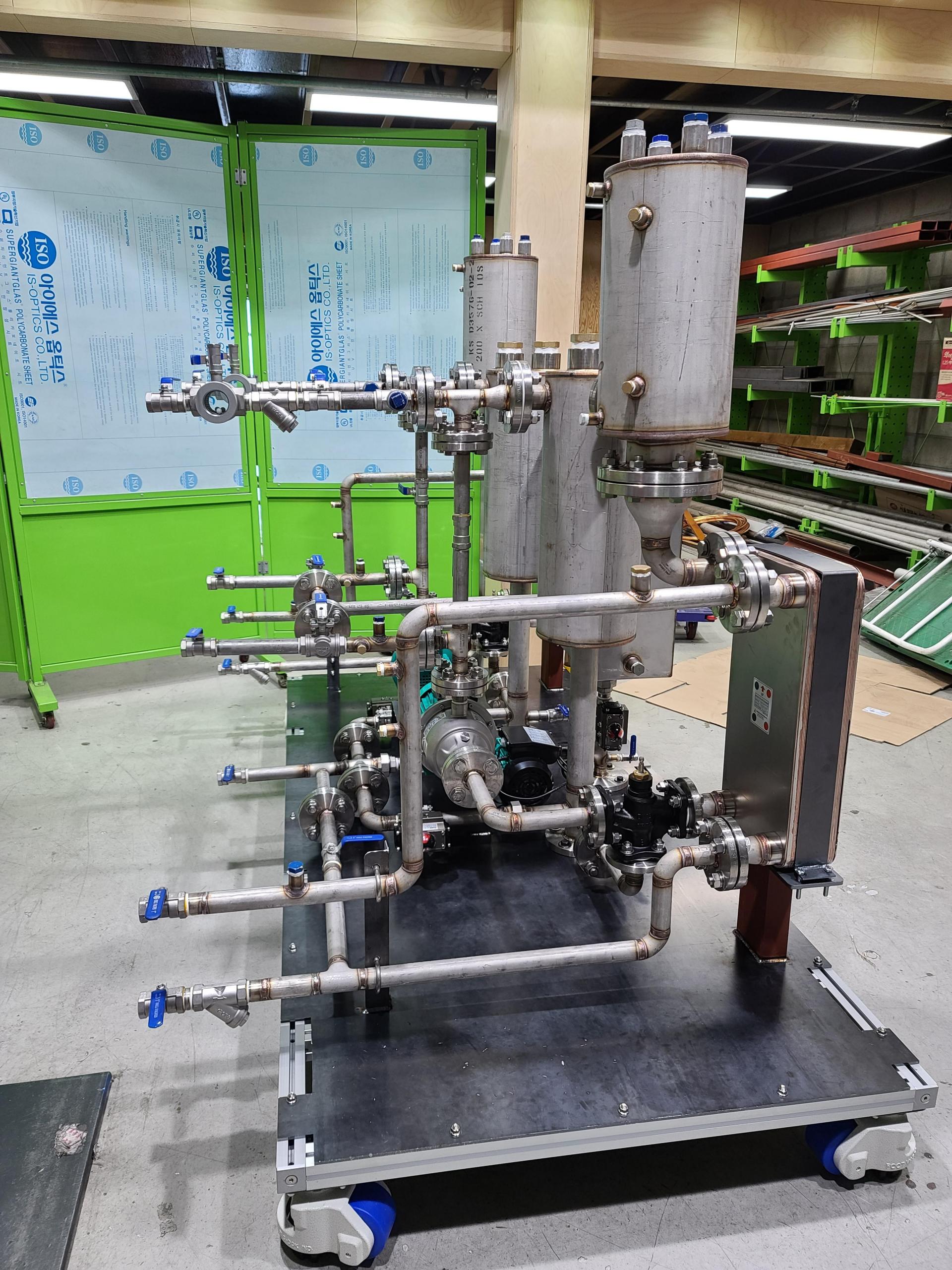

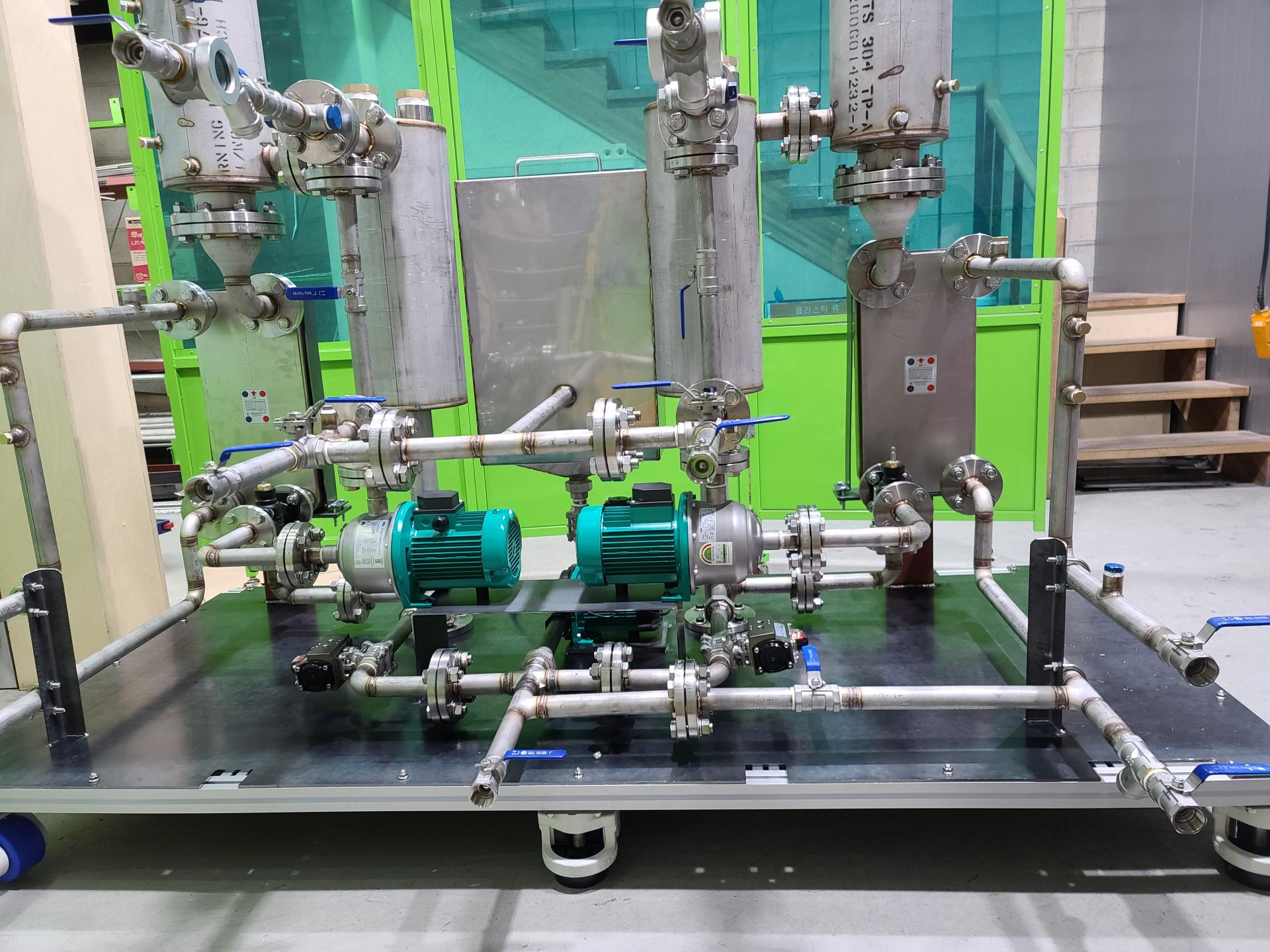

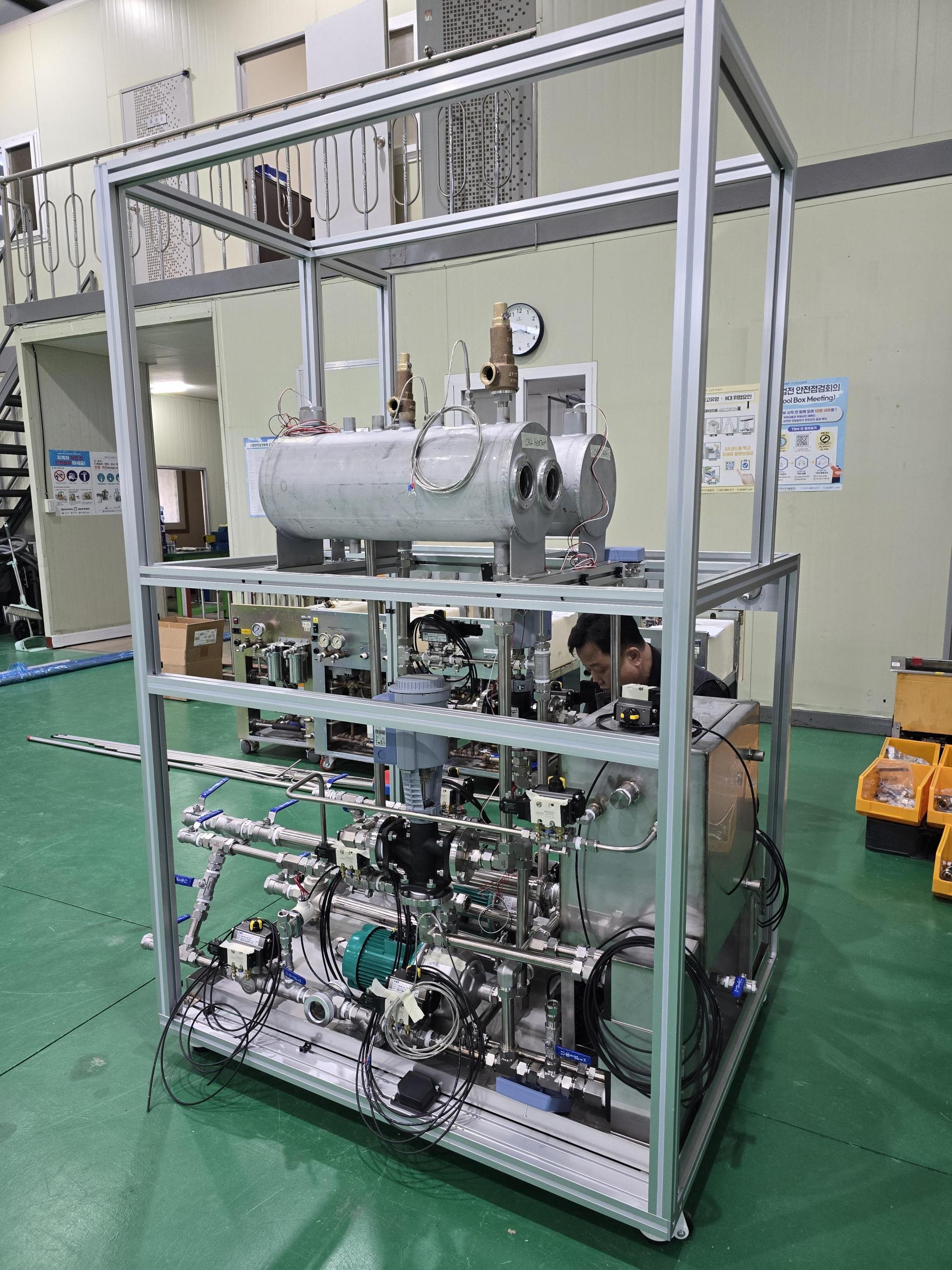

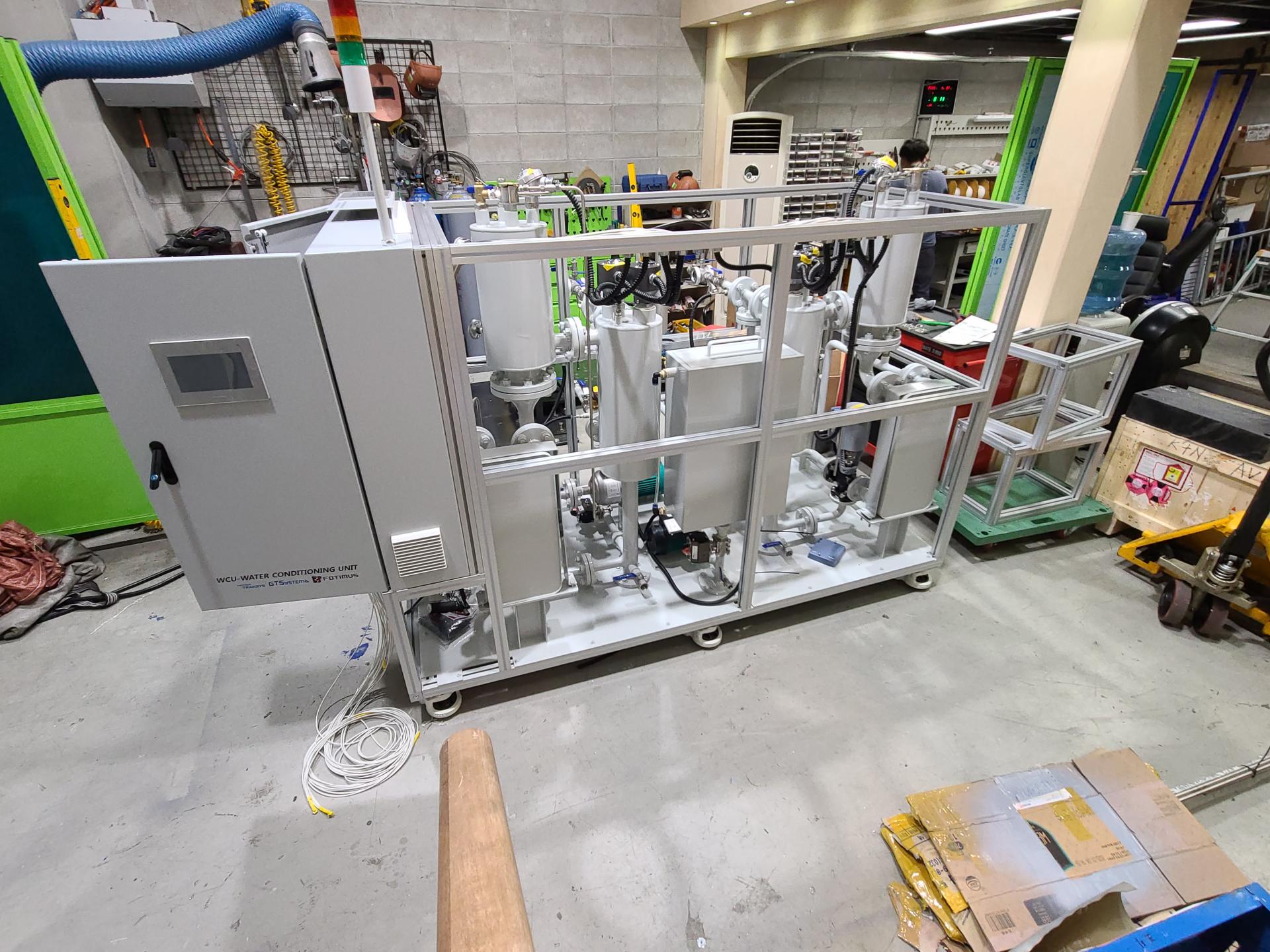

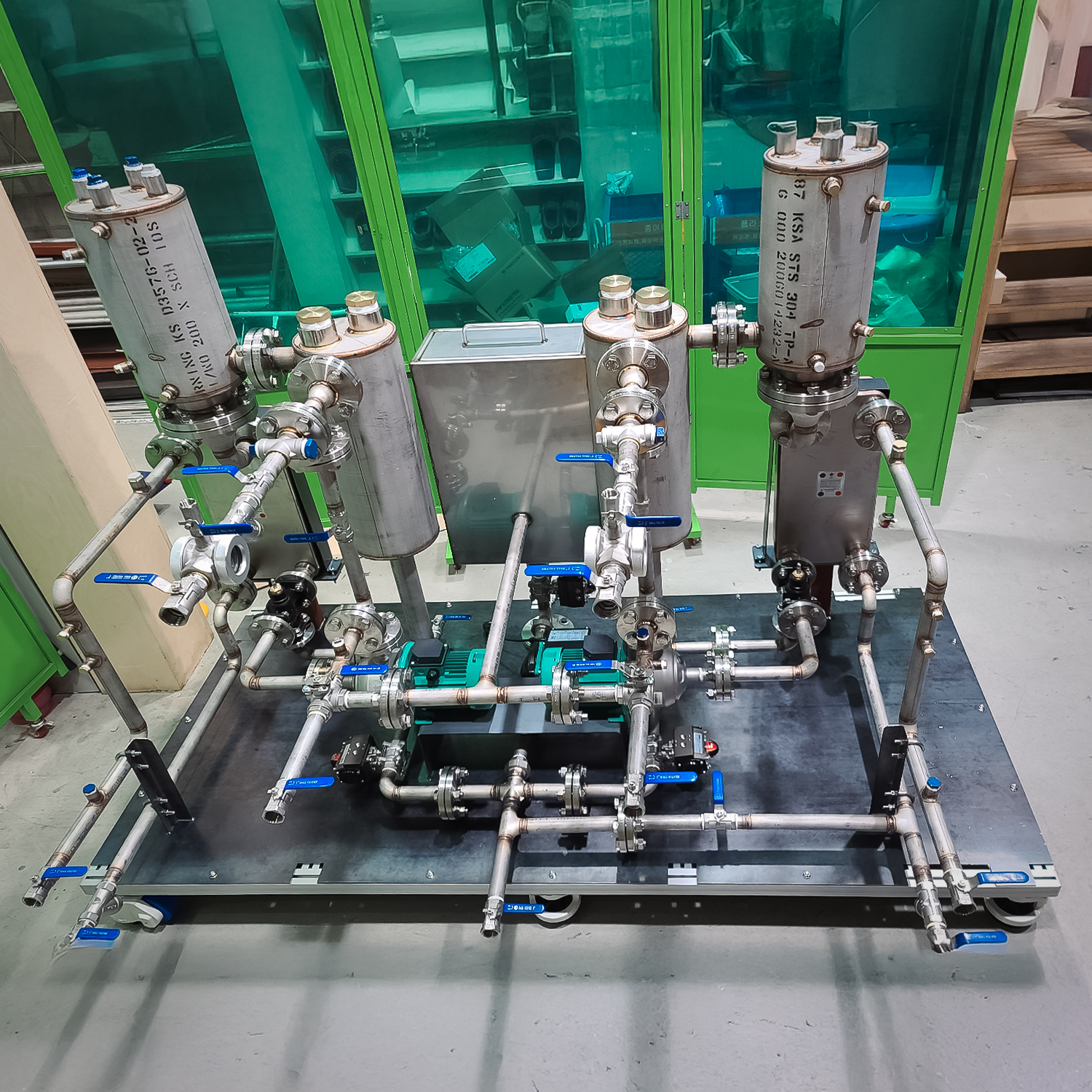

상온 냉각수 온도 조절기

상온 냉각수 온도 조절기

Ⅰ. MAIN SPECIFICATIONS	1CH 일체형 WTC
1. SPECIFICATIONS	WTC
ATF 1CH / LLC 1CH(일체형 with Chiller)	30 ℃ ~ + 120 ℃
(1-02) TEMPERATURE STABILITY	± 2.0 ℃
(1-03) COOLING CAPACITY	150,000 kcal
(1-04) COOLANT PUMP CAPACITY
① FLOW RATE	3~30 LPM
② PRESSURE RATE	0.5 ~ 6.0bar
(1-05) RESERVOIR TANK	100 ℓ
(1-06) REFRIGERANT	R - 404A
(1-07) Coolant	부동액
(1-09) PCW (냉각수조건)	100 lpm(min.), 32℃(max.), 4bar(min.)
2. DIMENSIONS
(2-01) CHILLER	X
3. WEIGHT
(3-01) CHILLER	1,360 Kg * 1 Set
4. POWER REQUIREMENTS	3Φ 380V 60Hz 105kW 60.0A (Breaker: 60A)
5. TEMP. CONTROL & DISPLAY	PID CONTROL
6. MAIN PARTS
(6-01) CIRCULATION PUMP	40A × 1EA
(6-02) HEATER	10kW × 1EA
(6-03) COMPRESSOR
7. CONNECTED FITTINGS
(7-01) COOLANT(SUPPLY / RETURN)	40A x 2 BALL VALVE*1 Set
(7-02) PCW	40A x 2 BALL VALVE*1 Set
8. COOLANT PLUMBING	SUS 304 Tube
9. CONTROL PANEL (TOUCH PANNEL)
(9-01) SWITCH(BUTTON)	START/STOP SWITCH RESET SWITCH ALARM LAMP / BUZZER
(9-02) ALARM STATUS
① FAULT	TEMP FAULT COMPRESSOR PRESS. / OVER LOAD OVER TEMP. PUMP PRESS. / PUMP OVER LOAD
② WARNING	COOLANT LEVEL/ FLOW/TEMP
10. INTERFACE
① COMMUNICATION	ETHERNET / ANALOG & DIGITAL
② SIGNAL	HEATER MC ON(SEND) / EMC(RECEIVE)
11. CUSTOMER	HTS HS

CHILLER FOTI-410
