CHILLER : FOTIMUS

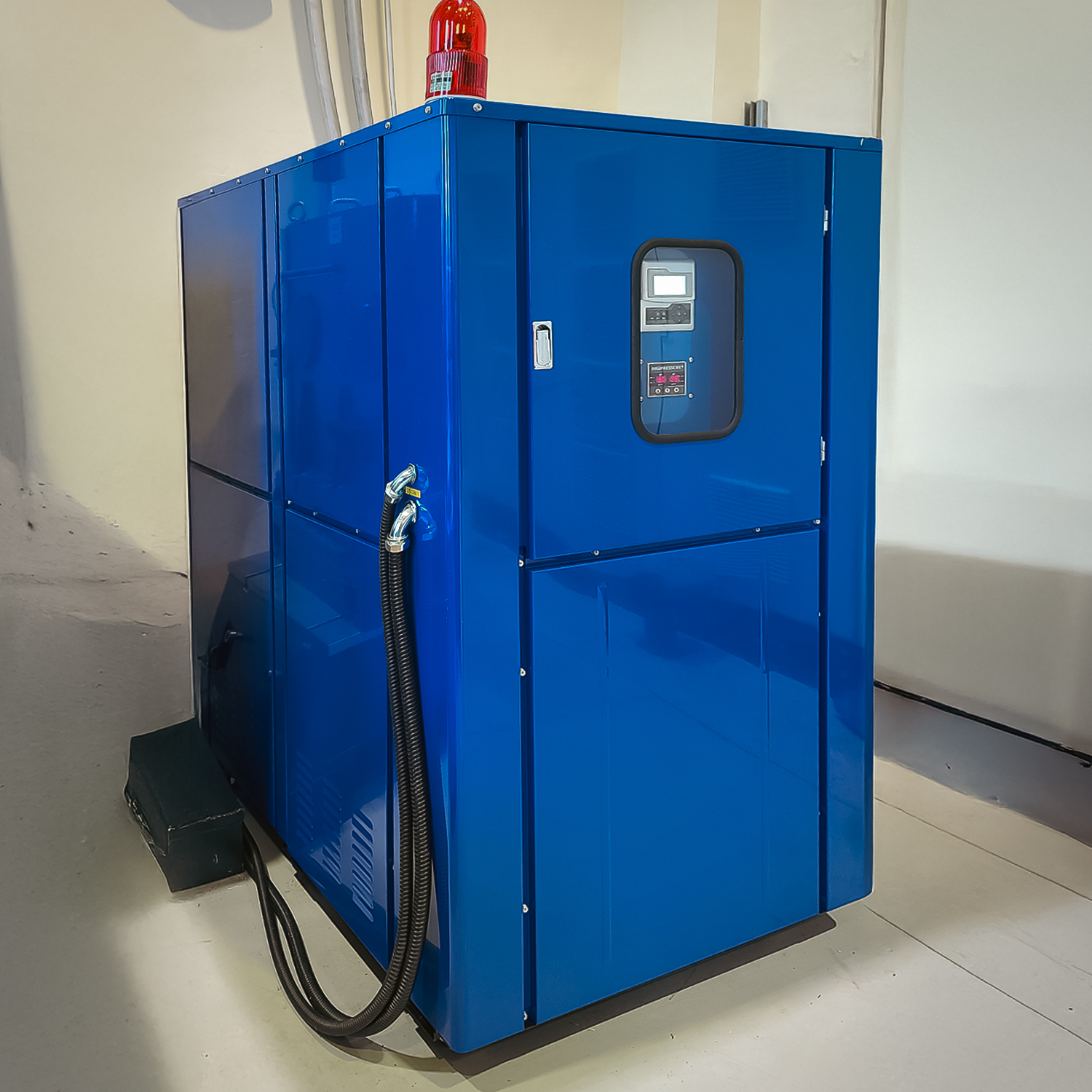

CHILLER

Ⅰ.MAIN SPECIFICATIONS	3CH CHILLER
1. SPECIFICATIONS	BTE-1ch	BTE-2ch	Universal Inverter-1ch
(1-01) TEMPERATURE RANGE	+10 ℃ ~ +25 ℃	+10 ℃ ~ +25 ℃	+10 ℃ ~ +30 ℃
(1-02) TEMPERATURE STABILITY	± 2.0 ℃
(1-03) COOLING CAPACITY	30kw (at 0℃)	30kw	30kw (at 20℃)
(1-04) COOLANT PUMP CAPACITY
① FLOW RATE	Max 100L/min	Max 100L/min	Max 24 LPM
② PRESSURE RATE	2.5 ~ 6.0 bar	2.5 ~ 6.0 bar	2.5 ~ 6.0 bar
(1-05) RESERVOIR TANK	20.0 ℓ + 30.0 ℓ	20.0 ℓ + 30.0 ℓ	20.0 ℓ + 30.0 ℓ
(1-06) REFRIGERANT	R - 404A
(1-07) Coolant	부동액
(1-09) PCW (냉각수조건)	100 lpm(min.), 32℃(max.), 2 bar(min.)
2. DIMENSIONS
(2-01) CHILLER	2,500(W) x 1,000(D) x 2,000(H)
3. WEIGHT
(3-01) CHILLER	1,500 Kg
4. POWER REQUIREMENTS	3Φ 440V 60Hz 77kW 102.0A (Breaker: 150A)
5. TEMP. CONTROL & DISPLAY	PID CONTROL

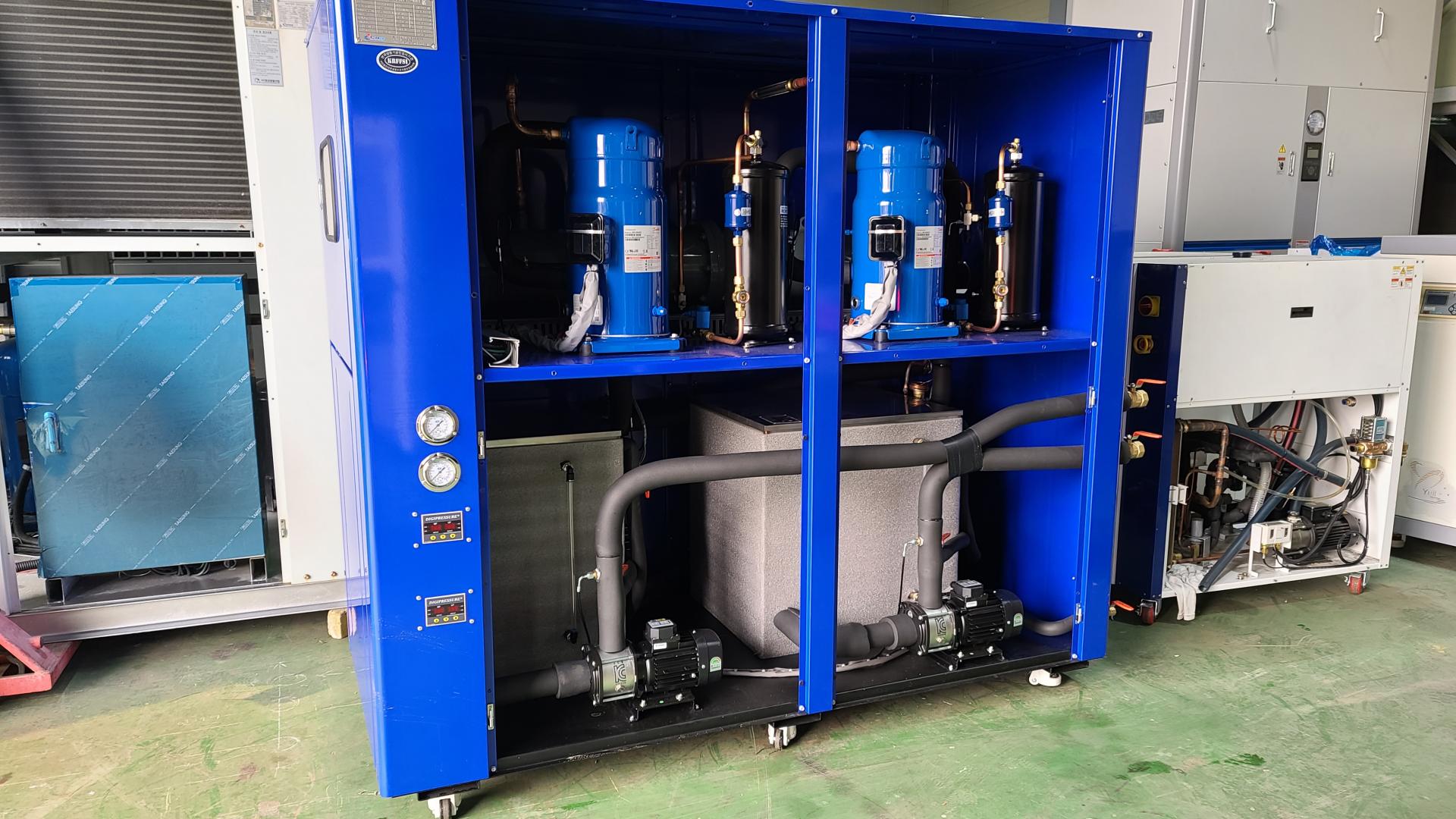

6. MAIN PARTS
(6-01) CIRCULATION PUMP	0.75 KW × 1EA	0.75 KW × 1EA	0.75 KW × 1EA
(6-02) HEATER	10 KW × 2EA	10 KW × 2EA	10 KW × 2EA
(6-03) COMPRESSOR	7.5 KW × 1EA	7.5 KW × 1EA	7.5 KW × 1EA

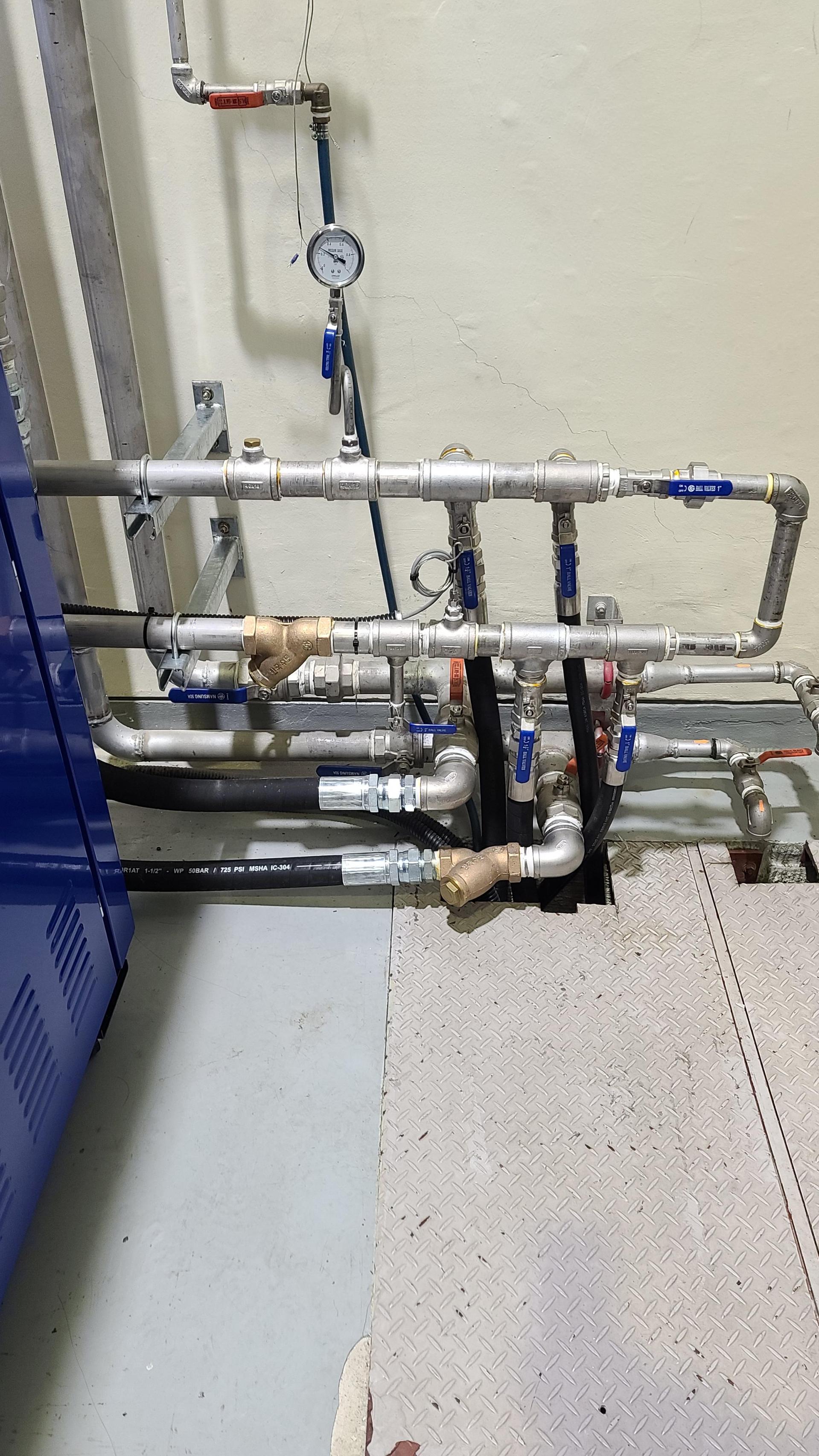

7. CONNECTED FITTINGS
(7-01) COOLANT(SUPPLY / RETURN)	25A x 2 BALL VALVE * 6Set
(7-02) PCW	25A x 2 BALL VALVE

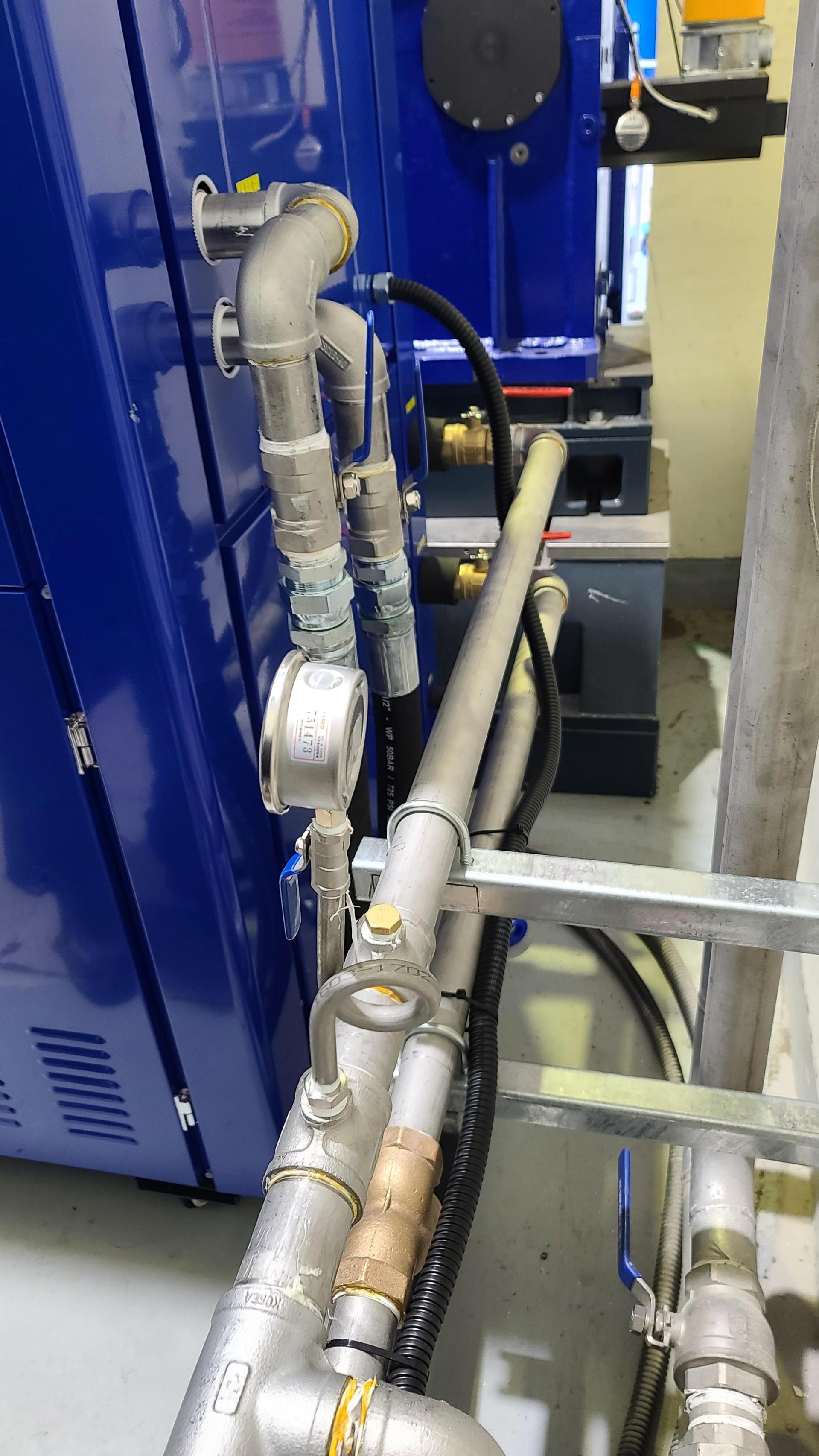

8. COOLANT PLUMBING	SUS 304 Tube

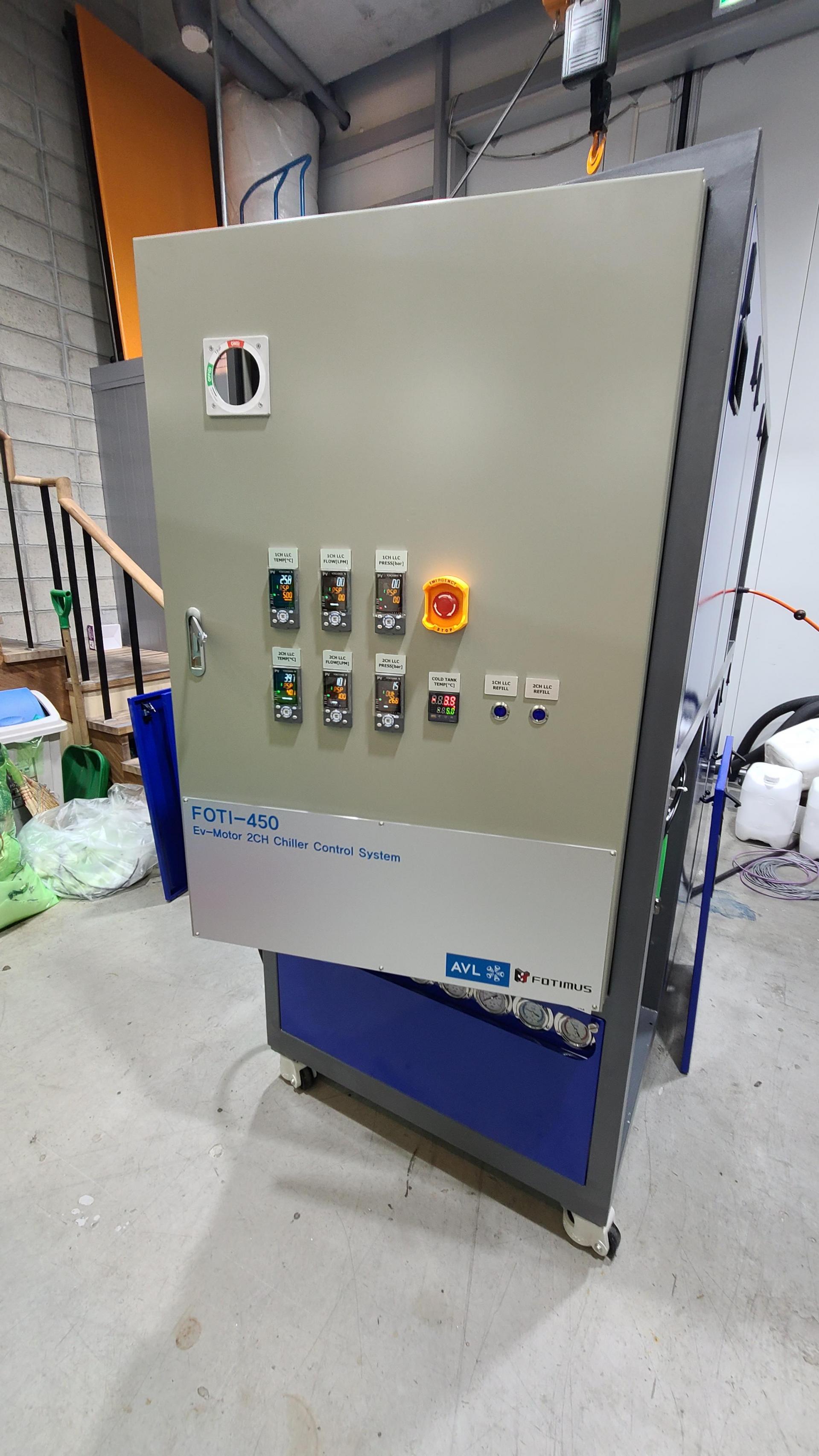

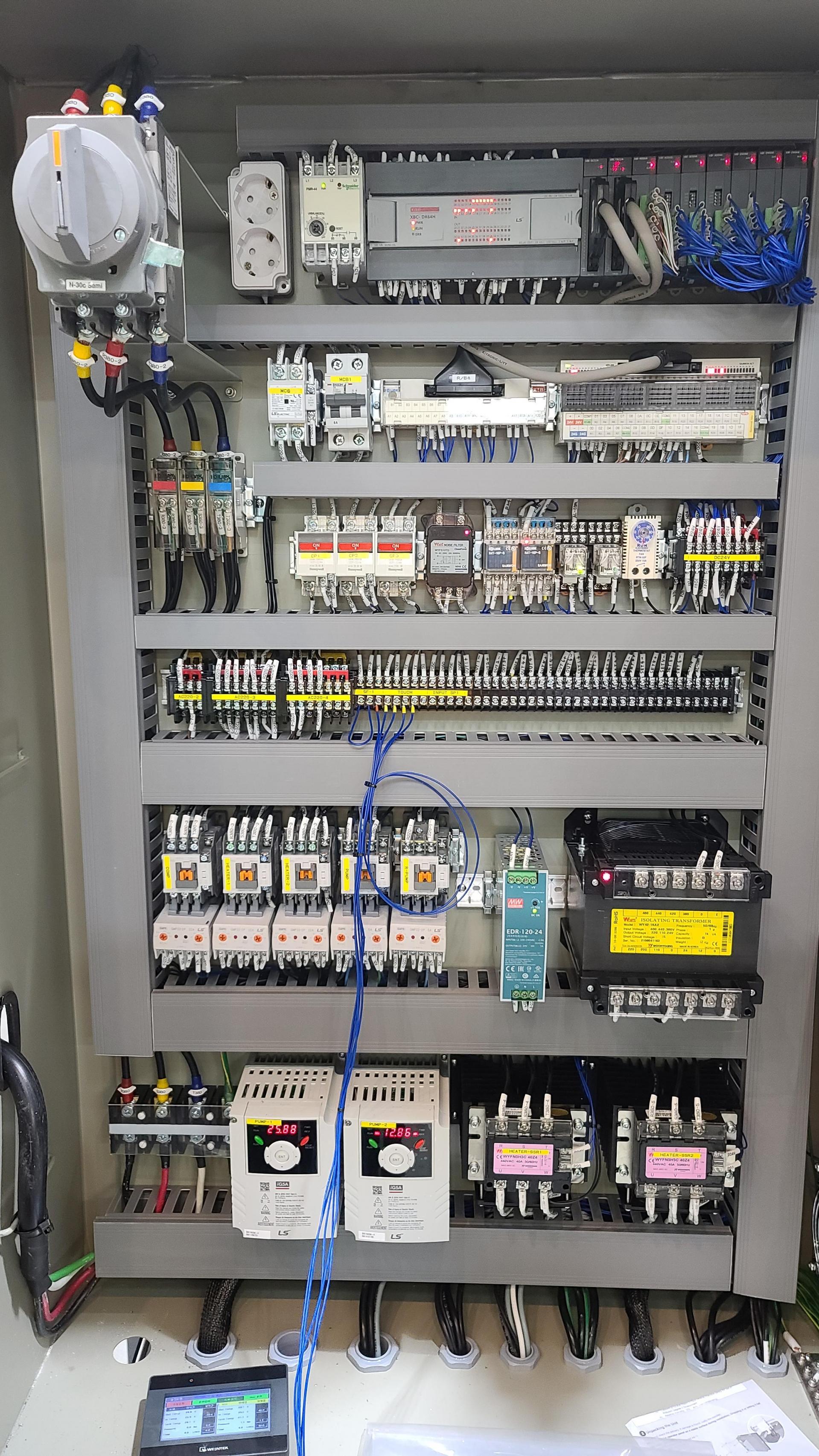

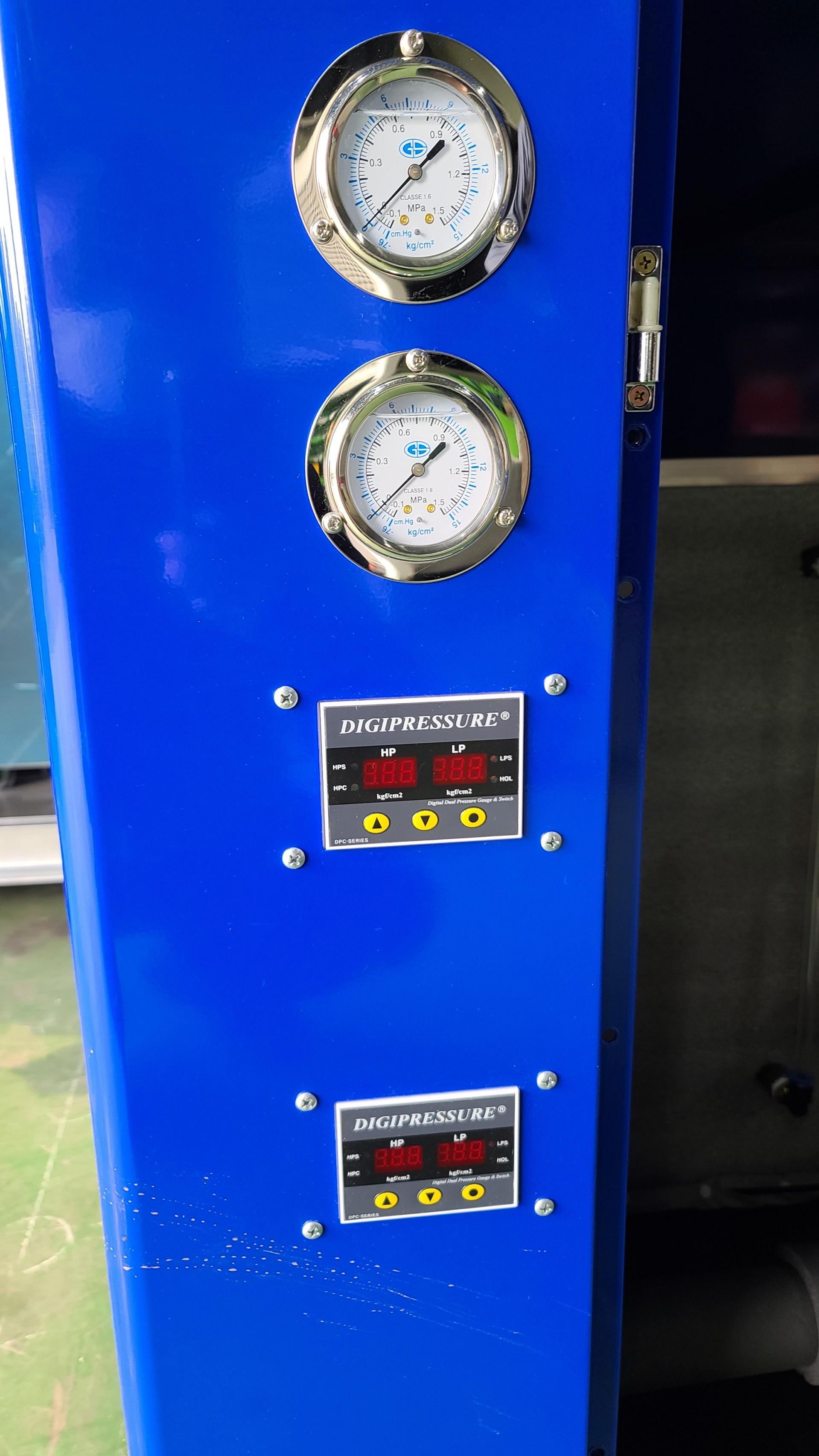

9. CONTROL PANEL (TOUCH PANNEL)
(9-01) SWITCH(BUTTON)	START/STOP SWITCH
	RESET SWITCH
	ARARM LAMP / BUZZER
(9-02) ALARM STATUS
① FAULT	TEMP FAULT
	COMPRESSOR PRESS. / OVER LOAD
	OVER TEMP.
	PUMP PRESS. / PUMP OVER LOAD
② WANRING	COOLANT LEVEL/ FLOW/TEMP
10. INTERFACE
① COMMUNICATION	ETHERNET/ANALOG&DIGITAL
② SIGNAL	HEATER MC ON(SEND)/EMC(RECIVE)
11. COUSTOMER	AVL Korea

LLC ATF 2CH CHILLER+3CH CHILLER 상온 냉각수 온도 조절기
